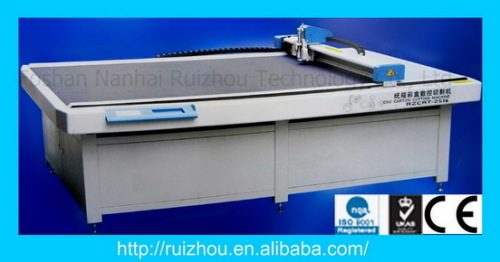

Mode | RZCRT-1410 | RZCRT-1813 | RZCRT-2516 |
Cutting area | 1400mm*1000mm | 1800*1300mm | 2500*1600mm |
Working Character | The cuting machine is running at the same time with the computer operation .Fast finish data transfer and it can be used continuously. | ||
Cutting Speed | 80-150cm/s | ||
Cutting thickness | 0.5-10mm | ||
Cutting materials | Corrugated paper, Plastic, Rubber board, Grey board Paper, Complex Material, Underlay ,White board paper | ||
Knife | Rotate blade head, Vibration blade head, Die cutter | ||
Applicable pen type | Common sign pen, Oil pen, ball-point pen, Silver pen | ||
Measure to Fix Paper | Vacuum-based | ||
Mechanical resolution | 0.07mm | ||
Software resolution | 0.025mm 0.01mm 0.1mm optional | ||
Interface of transmission | Standard parallel and serial interface | ||
Buffer Capability | Once fast transfer | ||
Command | HP-GL and GP-GL compatible mode | ||
Digital control Panel | Liquid crystal display and touching button | ||
Transmission materials | Straight line guide track / Synchronous belt / Imported synchronous belt | ||
Motor | Servo motor | ||
Oscillating Knife Head | Oscillating knife head motor 20000 rotate/min | ||
Machine working voltage | AC 220∨±10%,50HZ | ||
Air pump working voltage | AC 380∨±10%,50HZ |
